Grating

The company introduced advanced technology and equipment from the United States in 1992 to produce FRP molded gratings.
It is a structural plate that uses high-strength glass fiber roving as a reinforcing material and thermosetting resin as a matrix material to composite cast on a special metal mold. It has excellent characteristics such as light weight, high strength, corrosion resistance, flame retardancy, and strong anti-skid. Widely used in petrochemical industry, electric power, sewage treatment, marine engineering and other industries. It is suitable for operating platforms, stair walkways, gutter covers, etc. It is an ideal load-bearing component for various corrosion occasions. The company also produces transparent gratings, which are also ideal decorative materials for office buildings and residential buildings.
The product has passed the ASTM flame retardant test and ABS RQS certification, and is exported to North America, Europe, Southeast Asia and other countries.

1. Corrosion resistance

The different performance resins give the grid different corrosion resistance, and can be used for a long time in the corrosive environment of different acids, alkalis, salts, organic solvents, gas and liquid media.

2. Flame retardant

High-quality matrix resin and unique flame retardant formula give products excellent flame retardant properties. FRP grid products have passed the American Society for Testing and Materials (ASTM) flame retardant test. The flame diffusion coefficients of polyester resin, vinyl resin, and phenolic resin grids are less than 15, 10, and 5; the smoke density is less than 500, 300, and 5 respectively.

3. Lightweight and high strength

The perfect combination of continuous continuous alkali-free glass fiber yarn and resin in the large pool kiln gives the grille unique light and high strength characteristics. The specific gravity of the product is only 1/4 of the steel, the specific strength exceeds the steel, and the different sizes are more varied Carrying occasions provide the best design guarantee.

4. Aging resistance

The high-quality matrix resin and anti-aging additives give the grille a long-lasting anti-aging performance. The unique inner grid design makes the grille have a good self-cleaning function, ensuring the grille to have a long-lasting bright gloss and sustained high strength. The service life is 20 More than years.

5. Designability

The composite material's own characteristics give the grid a flexible design performance. In addition to the above characteristics, the product color is based on the six standard colors of yellow, green, blue, gray, orange, and black provided by the company. Provide the required color, the external dimensions of the product can be cut or spliced to any size required by the customer on the basis of the standard size provided by the company, and at the same time, the special requirements for the grille in special occasions can also be achieved through design. Good features.

6. Safe anti-skid

High elastic modulus and different surface effects give the grille a reliable and non-slip performance. The product has a slight elasticity and reduces staff fatigue. Double plane, crescent, sand, diamond-shaped cover, different surface effects provide different occasions. Anti-slip performance.

7. Electrical performance

The alkali-free glass fiber and high-performance resin endow the product with superior electrical properties. The electrical breakdown strength of the product can reach 10KV / mm. The metal tool does not generate electric sparks when it is hit. use.



Technical Parameters

Maximum load of full panel for Concentrated load kgf

Cell

Lattice size

Span

Span (mm)

38.1 × 38.1 × 25.4

38.1 × 38.1 × 38.1

25.4 × 101.6 × 25.4

50.8 × 50.8 × 50.8

Deflection Choice

F

S

1%

F

S

1%

F

S

1%

F

S

1%

460

335

482

592

708

1061

1273

322

482

580

900

1350

1620

610

228

323

412

524

786

942

225

340

404

820

1230

1476

915

125

188

240

335

456

564

126

189

226

619

928

1161

1220

82

115

148

210

314

377

97

145

174

404

606

732

1524

135

203

243


Maximum linear load table for grid installation (305mm wide plate) Maximum loads of 12 \"wide strip for Concentrated load kgf

Cell

Lattice size

Span

Span (mm)

38.1 × 38.1 × 25.4

38.1 × 38.1 × 38.1

25.4 × 101.6 × 25.4

50.8 × 50.8 × 50.8

Deflection Choice

F

S

1%

F

S

1%

F

S

1%

F

S

1%

305

225

337

405

573

859

1032

330

495

595

899

1349

1620

460

125

175

208

370

555

666

177

265

319

512

768

922

610

67

98

117

208

314

373

103

155

185

350

525

632

915

29

43

52

93

140

167

46

68

82

189

284

341

1220

51

77

92

33

49

58

111

167

197


Maximum load of full panel for uniform load kgf / m2

Cell

Lattice size

Span

Span (mm)

38.1 × 38.1 × 25.4

38.1 × 38.1 × 38.1

25.4 × 101.6 × 25.4

50.8 × 50.8 × 50.8

Deflection Choice

F

S

1%

F

S

1%

F

S

1%

F

S

1%

305

3089

4636

5563

5366

8053

9661

16849

25296

30360

460

912

1371

1644

3840

6308

7570

2088

3015

3619

5998

8998

10800

610

381

576

693

1615

2659

3192

858

1287

1545

2880

4320

5185

915

112

171

205

478

708

849

337

507

609

1108

1663

1996

1220

200

293

351

138

207

249

467

702

843

F——Stable installation, ie deflection: span = 1: 180 Solid Deflection to Span ratio is 1: 180

S——Standard installation, namely deflection: span = 1: 120 Standard Deflection to Span ratio is 1: 120


Chemical media

Chemicals

concentration%

Concentration

Maximum service temperature ℃ Maximum service temperature

Vinyl resin

Vinyl ester resin

M-benzene resin

Isophthalic resin

Orthophthalic resin

Acetic acid

50

82

30

20

Chromic acid

20

38

No

No

Nitric acid

5

70

48

25

Phosphoric acid

85

100

65

No

Sulfuric acid

25

100

52

20

Hydrochloric acid

<10

100

52

No

20

90

38

No

37

65

No

No

Hydrobropic acid

25

93

38

No

Lactic acid

100

100

52

40

Benzoic acid

Saturated All

100

65

------

Aluminum hydroxide

Saturated All

82

45

No

Agueous ammonia

28

52

30

No

Natrium hydroxide

10

65

20

No

25

65

No

No

50

70

No

No

Ammonium sulfate

Saturated All

100

60

50

Ammonium chloride

Saturated All

100

82

60

Ammonium bicarbonate

Saturated All

52

No

No

Copper chloride

Saturated All

100

65

60

Copper cyanide

Saturated All

100

No

No

Ferric chloride

Saturated All

100

65

60

Ferrous chloride

Saturated All

100

60

50

Manganese sulfate

Saturated All

100

65

45

Sodium cyanide

Saturated All

100

------

------

Potassium nitrate

Saturated All

100

65

40

Zinc sulfate

Saturated All

100

65

45

Kalium nitrate

100

100

65

40

Potassium dichromate

100

100

60

40

Benzene


No

No

No

Ethylene glycol

100

100

65

40

Propylene glycol

100

100

65

40

Gasoline

100

80

60

35

Glucose

100

100

38

No

Glycerine

100

100

65

60

Hydrogen peroxide

30

38

------

------

Dry chlorine gas

100

82

38

No

Wet chlorine gas

Saturated All

82

No

No

Vinegar

100

100

65

30

Distilled water

100

93

60

25

Fresh water

100

100

70

40




1. Type selection

The selection of the type of grille mainly considers the load-bearing form, maximum working load and span of the supporting structure in use, and also considers other requirements such as corrosive medium and ambient temperature. The normal load-bearing form has three kinds of center point load, center line load and uniform load.

There are three types of installation: solid installation, standard installation and flexible installation.

Our company recommends: when the working environment is harsh, long-term heavy load or high-rise use, use solid installation; under normal circumstances, use standard installation; short-term load-bearing level is generally small, and flexible installation is used when the platform is low.

The maximum deflection rate of the grille does not exceed 1%. According to the specific use environment and installation requirements, refer to the standard size table to determine the layout and load span design of the grille. The customer selects the most suitable grille type.

2. Resin selection

The corrosion resistance of the grid mainly depends on the matrix resin of the grid. The company has established good cooperative relations with international and domestic well-known resin suppliers, and is exclusively authorized by Ashland to use the Ashland logo. According to the specific corrosion environment and medium conditions used by the grille, the most suitable resin type can be determined by referring to the grille's corrosion resistance guide. For special corrosion media not listed in the corrosion resistance guide, please contact our technical department, we will provide technical support to customers to determine the best resin type. See resin selection table

Matrix

Resin

Phthalate resin

M-benzene resin

Vinyl resin

Phenolic Resin

performance

It has good corrosion resistance, and can be used in the environment of weak inorganic acids and various salts. Long-term use temperature is -50 ℃ ~ 52 ℃.

It has excellent corrosion resistance and can be used in medium-intensity inorganic acids, weak bases, and various salt media. Long-term use temperature is -50 ℃ ~ 90 ℃.

It has excellent corrosion resistance and can be used in harsh media environments such as acid, alkali, salt, solvent or acid-base alternation. Long-term use temperature is -50 ℃ ~ 100 ℃.

It has excellent flame retardancy, acid resistance and solvent resistance, an oxygen index of more than 50, and a very low smoke rate. High temperature performance, long-term use temperature can reach 180 ℃.

3. Color

The choice of grille color mainly depends on the coordination of the product with the surrounding environment and the customer's aesthetic habits. Our company can provide seven standard colors of yellow, green, blue, gray, light gray, orange and black and transparent grille for customers to choose , And can be produced according to the samples, swatches or designated color cards provided by customers.

4. Surface

The surface form of the grille mainly depends on the anti-skid requirements of the use occasion. Our company can provide six different surfaces for customers to choose from: crescent, sand, double plane, diamond plate cover, sand panel cover and flat panel cover. The cover-type grille will increase the thickness and weight of the grille and greatly increase the strength of the grille.

5. Flame retardant requirements

The flame retardant performance group of the grille depends on the flame retardant requirements of the application occasions. The general flame retardant occasions can use our company's normal flame retardant grilles. The occasions with high flame retardant requirements can use phenolic grilles. Burn the grille.

6. Special requirements

Our company has strong grid product development capabilities and mold development and manufacturing capabilities. If the customer has special requirements on the load, corrosion resistance, electrical conductivity, and anti-static of the grille, our company can provide special design and production.


Platform installation

1. The supporting edge of the grid has at least 40mm wide support on the steel beam, the installation gap between the grid and the grid is 6mm, and the installation gap between the grid and the concrete column is 10mm.

2. M-type or L-type fixtures should be used to fix the grid and the supporting steel beams. At least 4 grids are required for each grid. C-type clamps should be used to connect the edges of two adjacent non-supporting grids. Use at least 1 per 1.8m center

Trench installation

1. Refer to the grid size of the grid, and adjust the trench size as much as possible, so that the edge of the grid after cutting is a closed mouth to maintain the integrity of the cell and achieve a beautiful and elegant installation effect.

2. The grid has at least 40mm wide support on the concrete foundation, and the gap between the grid and the concrete is 3-6mm.

Stair installation

1. The grille step should be installed in the step frame. The frame can be an ordinary steel frame or a FRP frame.

2. The gap between the grid step and the frame is 3-6mm, each step is fixed with 8 fixing fixtures, and 2 are used for each corner.

3. The grid fixing jigs provided by our company are divided into M-type, L-type and C-type. Different clamps have different functions: M-type clamps are used for positioning connection between the grid and the supporting structure; L-type clamps are used For the special limit connection between the grille and the support structure; the C type is used for the overall connection between the edges of the two grilles. At the same time, the company provides corresponding screws, gaskets and other accessories.

Grill maintenanceMaintenance:

1. Dust and dirt on the surface can be cleaned with washing liquid during use, no other maintenance measures are required.

2. In the process of use, direct contact with various open flames and high temperatures such as electric welding and oxyacetylene flame during steel structure and equipment maintenance should be avoided.

3. In the process of use, the dragging, impact damage and paint pollution of various steel materials, steel sharps, tools, etc. should be avoided when repairing the steel structure and equipment.


Application industry: petrochemical industry, paper industry, sewage treatment, power plant, metallurgy / refining, engineering construction, textile printing and dyeing, pharmaceutical manufacturing, food processing, marine exploration, etc.

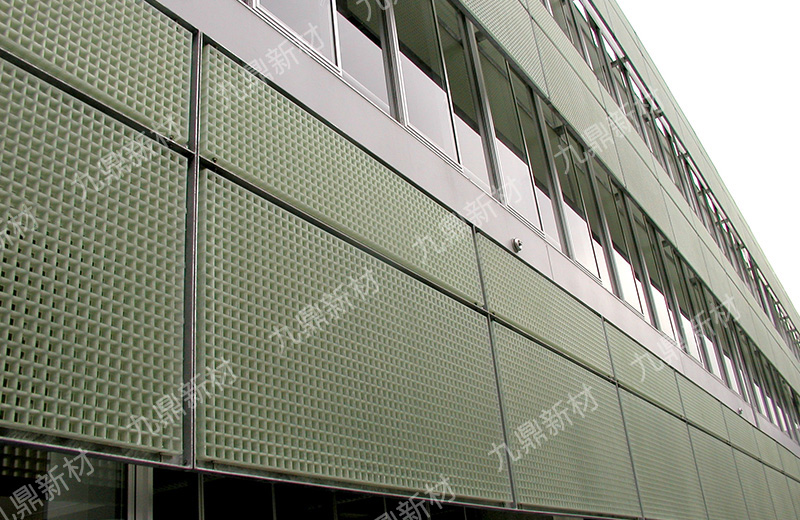

Specific uses: operating platforms, drilling platforms, equipment maintenance platforms, stair steps, floors, gutter covers, walkways, pedestrian bridges, equipment safety rails, stair rails, scaffolding, filler brackets, decorative grilles, ventilation grilles, etc.
