1. Introduction

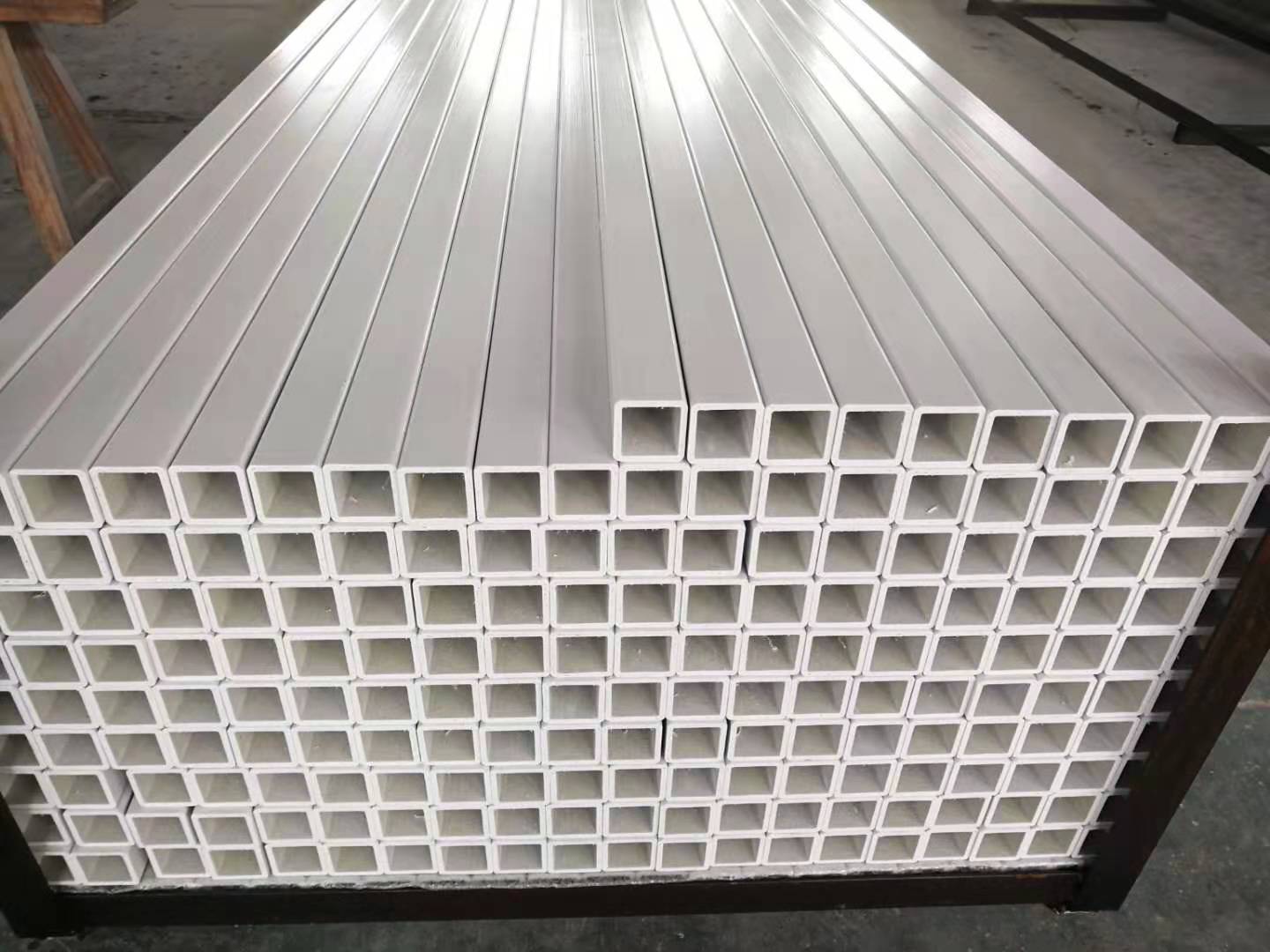

With rich experience in FRP pultrusion industry since 2002, Jiangsu Jiuding offers a complete range of pultruded profiles.Jiuding FRP Pultruded square tube is available in a variety of resin types, colors, thicknesses and length.
2. Specification of FRP round tube
No. | A(mm) | B(mm) | T(mm) | Weight (kg/m) | Sectional drawing |
1 | 25.4 | 25.4 | 2 | 0.36 |
|
2 | 25.4 | 25.4 | 3.2 | 0.54 | |
3 | 36 | 36 | 3 | 0.75 | |
4 | 38 | 38 | 2.5 | 0.68 | |
5 | 38 | 38 | 4 | 1.03 | |
6 | 41.4 | 41.4 | 4.2 | 1.19 | |
7 | 50 | 50 | 4 | 1.40 | |
8 | 50 | 50 | 5 | 1.71 | |
9 | 50 | 50 | 6 | 2.01 | |
10 | 50.8 | 50.8 | 6.35 | 2.15 | |
11 | 62.2 | 62.2 | 6.4 | 2.71 | |
12 | 64 | 64 | 6.35 | 2.78 | |
13 | 75 | 75 | 6 | 3.15 | |
14 | 75 | 75 | 8 | 4.07 | |
15 | 75 | 75 | 9 | 4.52 | |
16 | 76 | 76 | 6.35 | 3.36 | |
17 | 80 | 80 | 6 | 3.37 | |
18 | 90 | 90 | 4 | 2.61 | |
19 | 100 | 100 | 8 | 5.59 | |
20 | 101.6 | 101.6 | 6.35 | 4.59 | |
21 | 120 | 120 | 8 | 8.80 | |
22 | 120 | 120 | 5 | 4.37 | |
23 | 150 | 150 | 8 | 8.63 |
3. Advantages
® Anti-corrosion and Anti-ageing
® Non-conductive
® Very designable
® Light weight and high strength
® Easy of cutting and installation
® Abundant color for choice
® Low maintenance
4. Application
Handrail of waterworks Guardrail of chemical factor
Structure support in chemical factory Sturcture support in cooling tower
Handrail in garden Handrail in bridge
5. Choice for pultruded square tube
l Resin choice: GP resin, ISO resin, VE resin, Phenolic resin
l Color choice: Yellow, Grey, Green, black,red,white,brown,custom color
6. production process
Drilling holes
Cutting process
7. Payment terms ,Delivery and Service
√Payment: All the payment can negotiate, generally by T/T or L/C.
√Delivery:Depends on the quantity,usually about one month
√Service: 24 hours online service, technical overseas service
